MV5 VU2

Data Matrix CodeScribe markingIntegration

The expert for automation

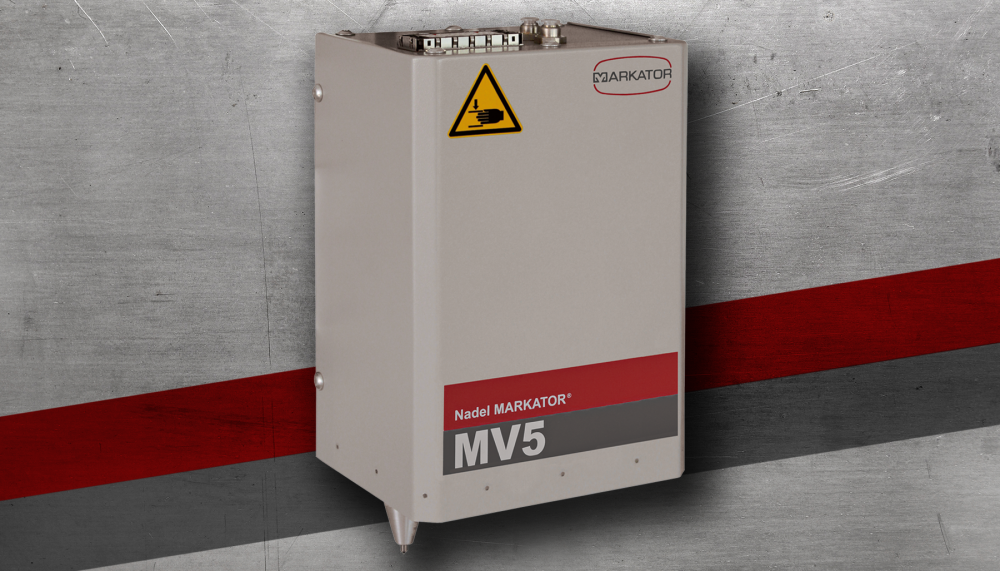

Compact and weight-optimized for easy integration

Product details

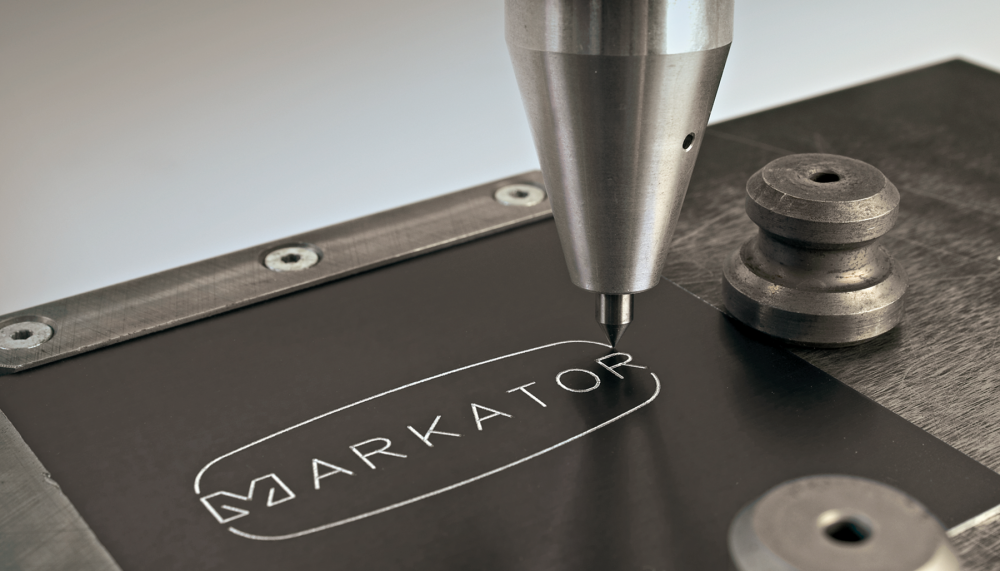

You can rely on the extremely robust MV5 VU2 scribe marking head in your daily work. The high-quality linear guides give the scribe marker high steadiness and rigidity and ensure a long durability. The technology is designed for high quantities and short cycle times in industrial 3-shift operation. For scribe marking, a pneumatically driven diamond marking pin is usually used. The marking head is maintenance-free and works independently of any position.

COMPACT

  • Extremely compact scribing marking head for space-saving installation in a production line
  • Mounting on an industrial robot possible
  • Weight-optimized construction
  • Deep and distortion-free marking

FUNCTIONAL

  • Low-noise marking through optimized scribe technology
  • High rigidity and long durability due to linear guides in double versions
  • High functionality through modular MARKATOR design system
  • Low air consumption

FAST

  • Precise and fast markings due to short valve activation times
  • Infinitely variable adjustment of the marking strengths of the scribe marking device via pressure regulator
  • With the SPRINT plus and SPRINT plus 2 options, higher marking speeds can be achieved for scribe marking



Marking areas (x/y): 80 x 50 mm / 80 x 100 mm / 160 x 50 mm / 160 x 100 mm / 200 x 175 mm

Weight: approx.. 6,7 kg

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,0125 mm for extrem high marking quality

Protective cover: available

Sensor: available

Mounting position: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

MV5 ZE 101 XL MV5 ZE 401 XL
19" version: no yes
Plug-in card slots: 2 4
Operation / Data input: Touch screen Clavier en feuille
Interfaces: 2x USB-A, 1x USB-B, RJ45 2x USB-A, 1x USB-B, RJ45
IP54: yes yes
Communication cards (optional): PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell) PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional): yes yes
Preconfigured PLC function module, e.g. TIA (optional): yes yes
Safety relay module (optional): yes yes

MV5 ZE 101 XL

19" version:
nein

Plug-in card slots:
2

Operation / Data input:
Touch screen

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4

Operation / Data input:
Clavier en feuille

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja
