MV5 U50/25

Data Matrix CodeElectro-pneumaticDot peen markingIntegration

Fits for every integration task

The ideal application with low space requirements

Product details

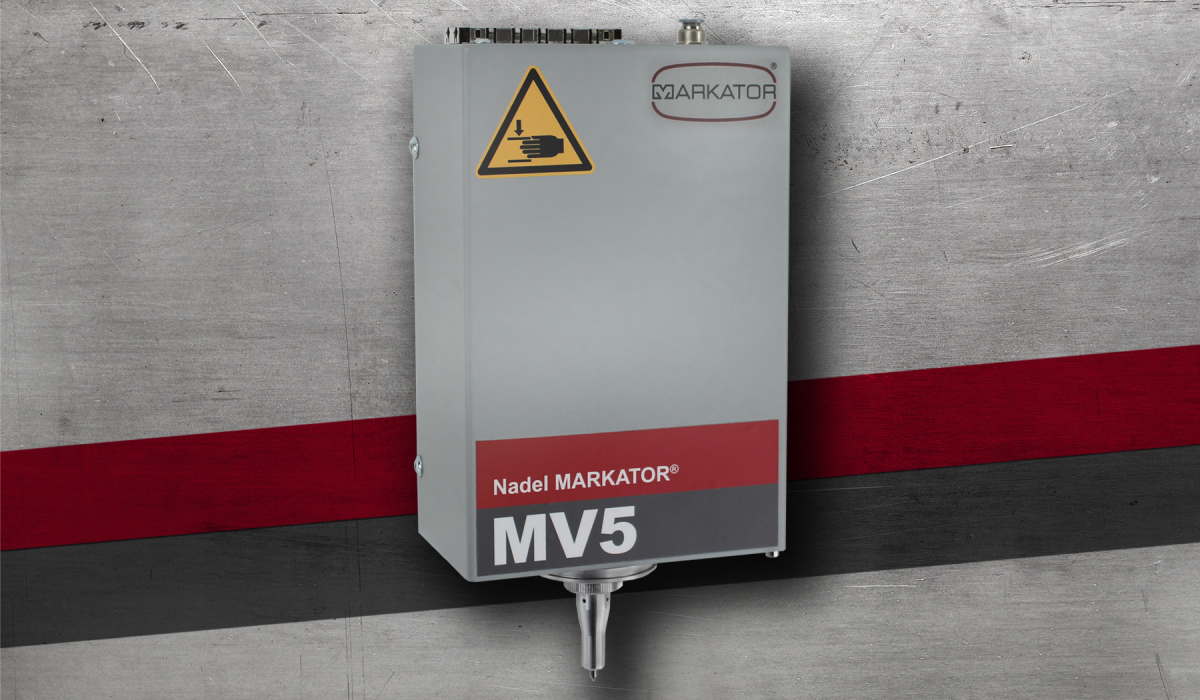

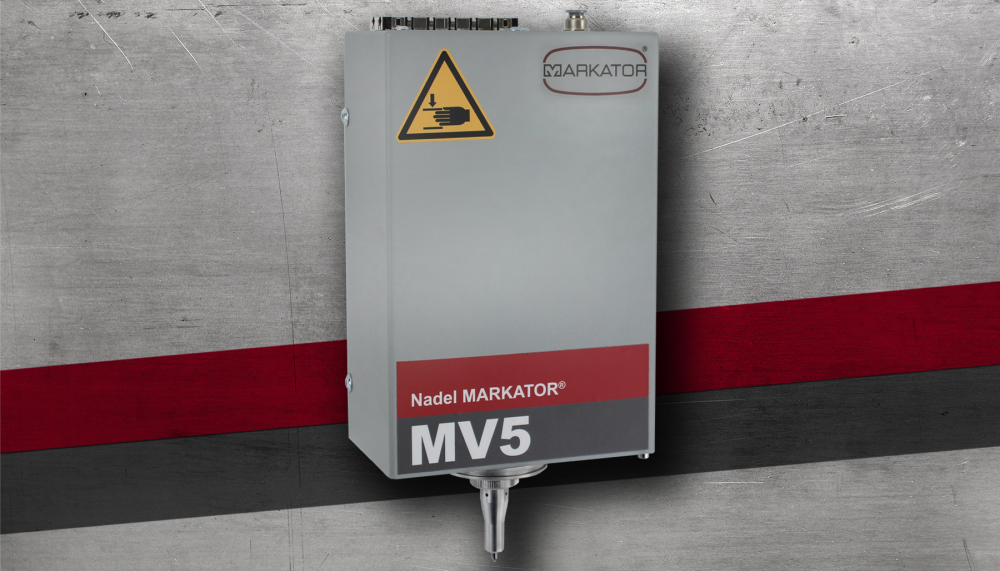

The compact dot peen marking machine MV5 U50/25 is used for permanent marking of all kinds of workpieces. The marking head is stably guided and can be used in combination with high-performance stepper motors in any position. The integration unit convinces with shortest marking times. The marking is done by a fast oscillating solid carbide marking pin. It is available in different sizes so that the marking can be customized for different materials.

MODULAR DESIGN SYSTEM

  • Simple and space-saving integration into production, assembly and test facilities due to extremely compact design
  • Optimal customization options
  • High functionality by combining with various control systems

RELIABLE

  • Especially high marking quality
  • High repetition accuracy
  • Extremely precise and distortion-free marking result due to optimum force transmission to the component to be marked
  • Stable mechanics through high-quality, double-guided linear guides in X and Y direction

HIGH PERFORMANCE

  • High marking strength through pneumatic tool drive
  • Fast oscillating marking pin for precise line markings and fast marking times
  • The stylus for holding the marking pin is maintenance-free



Marking areas (x/y): 50 x 25 mm / 50 x 45 mm / 80 x 25 mm / 80 x 45 mm / 120 x 25 mm / 120 x 45 mm

Weight: from ca. 2,5kg

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,0125 mm for extrem high marking quality

Protective cover: Kevlar, rubber, leather

Mounting position: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

MV5 ZE 101 XL MV5 ZE 401 XL
19" version: no yes
Plug-in card slots: 2 4
Operation / Data input: Touch screen Clavier en feuille
Interfaces: 2x USB-A, 1x USB-B, RJ45 2x USB-A, 1x USB-B, RJ45
IP54: yes yes
Communication cards (optional): PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell) PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional): yes yes
Preconfigured PLC function module, e.g. TIA (optional): yes yes
Safety relay module (optional): yes yes

MV5 ZE 101 XL

19" version:
nein

Plug-in card slots:
2

Operation / Data input:
Touch screen

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4

Operation / Data input:
Clavier en feuille

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja
